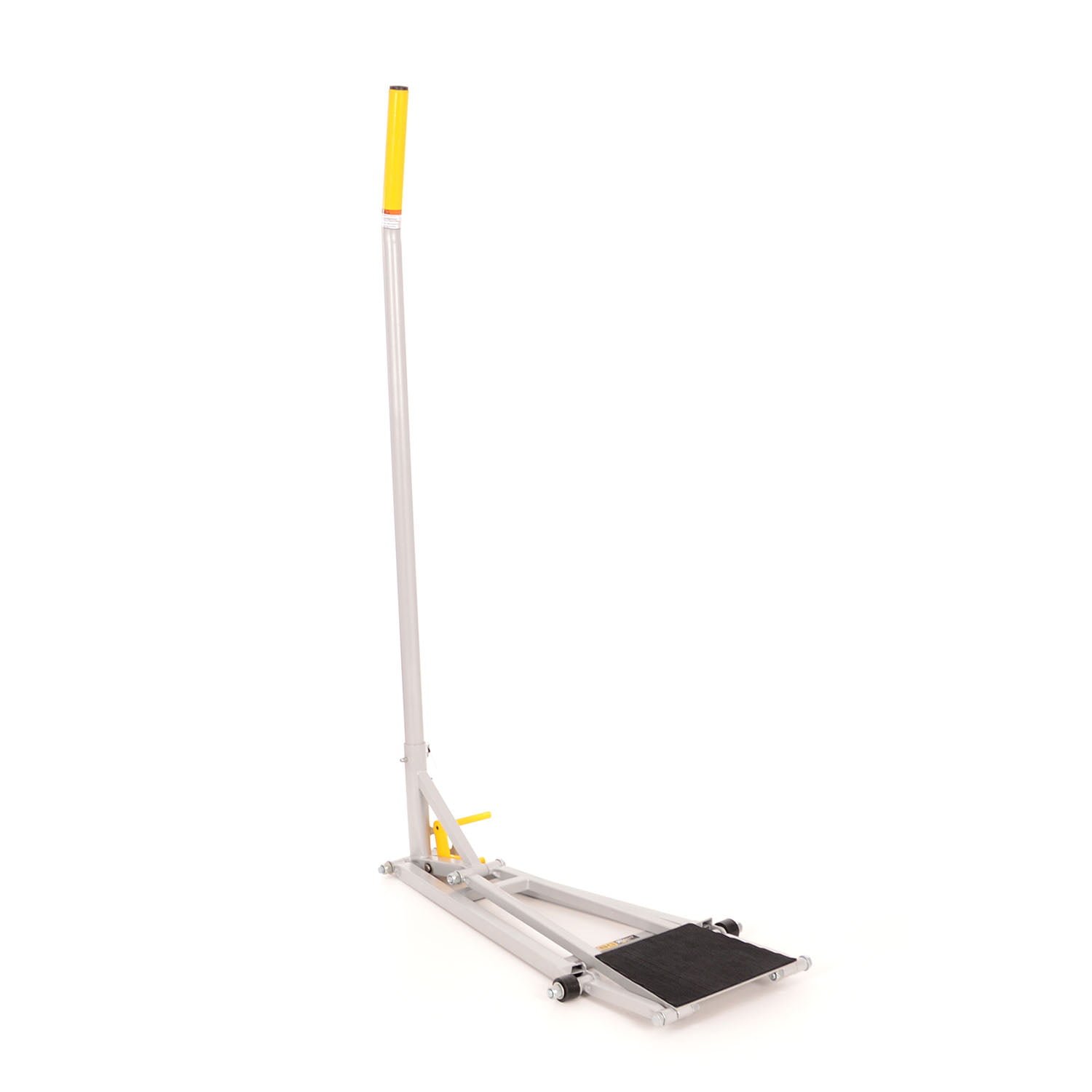

B-G Racing Quick Lift Jack – Formula Powder Coated

$484.99 inc. GST

Engineered and manufactured with durability and ease of use in mind, this B-G Racing Quick Lift Jack are purpose built for formula race cars.

With  a very low closed height it is designed to locate beneath the differential and front or rear chassis members, raising the car to a fixed height in one swift movement. A safety locking device which is quick and easy to use ensures the handle cannot be raised unless intended.

Produced from high-grade mild steel with a durable silver grey powder coated finish for longevity. Design detail includes an extra long, ergonomic handle for excellent leverage with a yellow tip to enhance visibility and nylon roller wheels to allow easy manoeuvrability.

TECHNICAL SPECIFICATION
Part NumberBGR157P
MaterialMild Steel
ColourGrey
FinishPowder Coated
Length(L) 790mm – 31.10”
Nett Weight10.0kg – 22.05lb
Gross Weight11.5kg – 25.35lb
Wheel Diameter35.5mm – 1.37”
Wheel MaterialNylon
Closed Height(CH) 50mm – 1.96”
Lifting Height(LH) 210mm – 8.26”
Reach(R) 570mm – 22.44”
Lifting Capacity300kg – 660lbs
Handle Length(HL) 1080mm – 42.51”
Lifting PadShortest Width – 210mm Longest Width – 250mm Length – 200mm

Product Features

  • Produced from high-grade mild steel.
  • Includes an extra-long ergonomic handle for excellent leverage, with a yellow tip to enhance visibility.
  • Nylon wheels allow easy maneuverability.
